Control(Selection) statements in c

In simple examples in the C programming language, the statements were executed in a single flow, i.e., one after another, until the very end of the program, as shown in figure 1 - left. Branching in a program means that at some point the program execution flow splits into two or more branches, i.e., there are 2 or more possible variants of program execution. In figure 1 - right, branching into 2 branches is shown. The program first starts in one flow, by executing statement 1 (see the figure on the right), and then, based on the value of the "condition", the program executes either statement 2 or statement 3, so there are two possible execution paths.

A condition is actually a logical variable or expression that can have two values:

Value 1, which represents logical truth (TRUE)
Value 0, which represents logical falsehood (FALSE)

In the C language, there is no special variable type for logical data; instead, the data type int is used. Positive values, usually 1, are interpreted as logical truth, while the value 0 is interpreted as logical falsehood. In other programming languages, there are special data types, for example, in C++ it is the bool type, and in Java it is the boolean type.

intcondition = 1;
if (condition) {
// statement 2 is executed
} else {
// statement 3 is executed
}

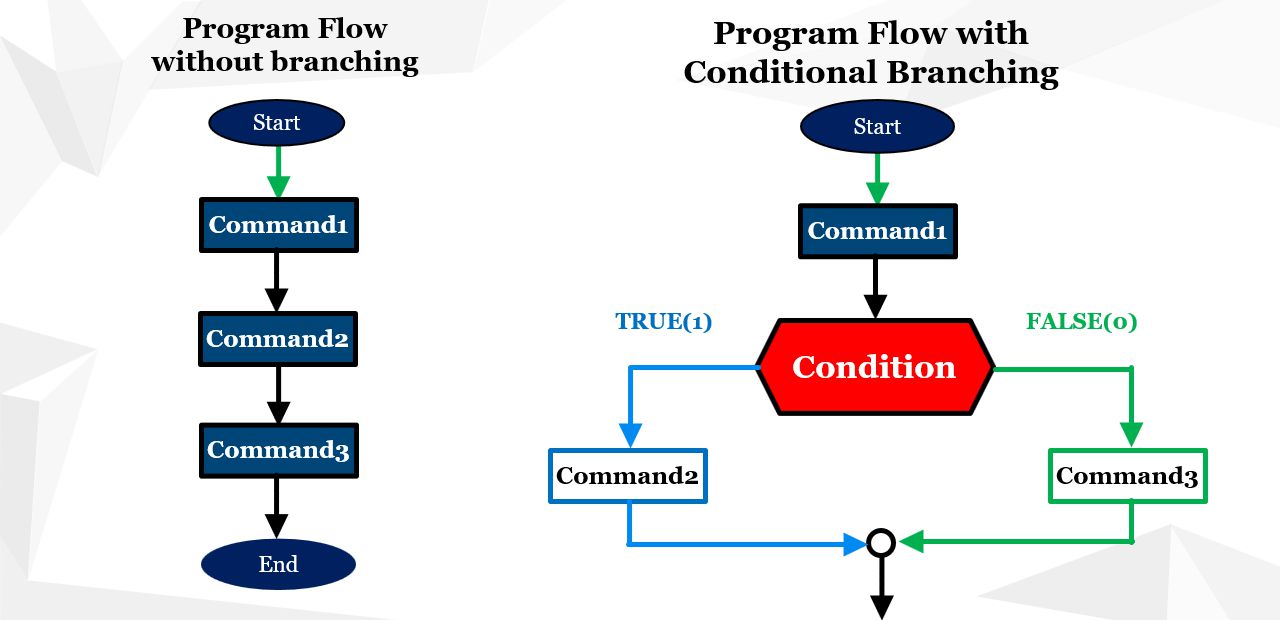

Figure 1: Diagrams of program execution flow: Without branching - left and with branching - right

In the previous figure, the given branching implies that there is at least one command for each stream (command 2 on the left, and command 3 on the right). However, there are cases when we do not have any orders in one of the branches. In that case, we are talking about the conditional execution of an order. The next picture (picture 2) shows it. In the diagram on the left, you can see that there are no commands, but if the condition has the value 0(FALSE), command 2 will not be executed, but bypassed.

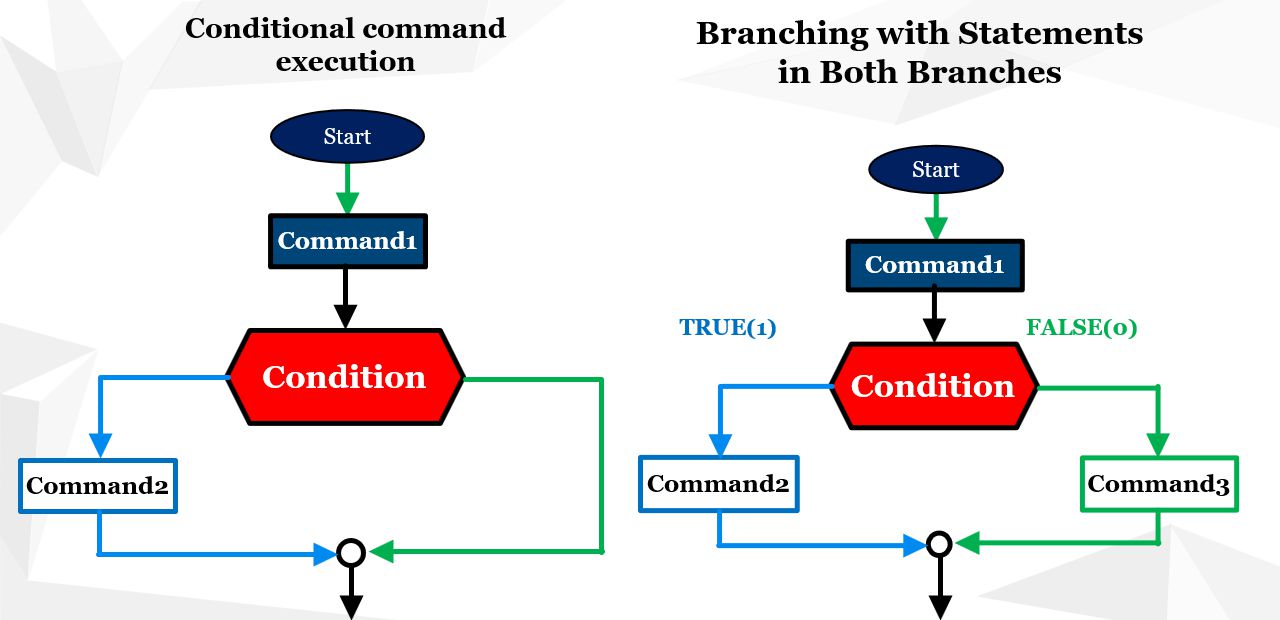

Figure 2: Diagrams of program execution flow: if statement - left and if-else statement - right

The statement represented by the previous diagrams are the if statement and the if statement in combination with the else. Figure 3 shows the syntax of these variants with the if statement:

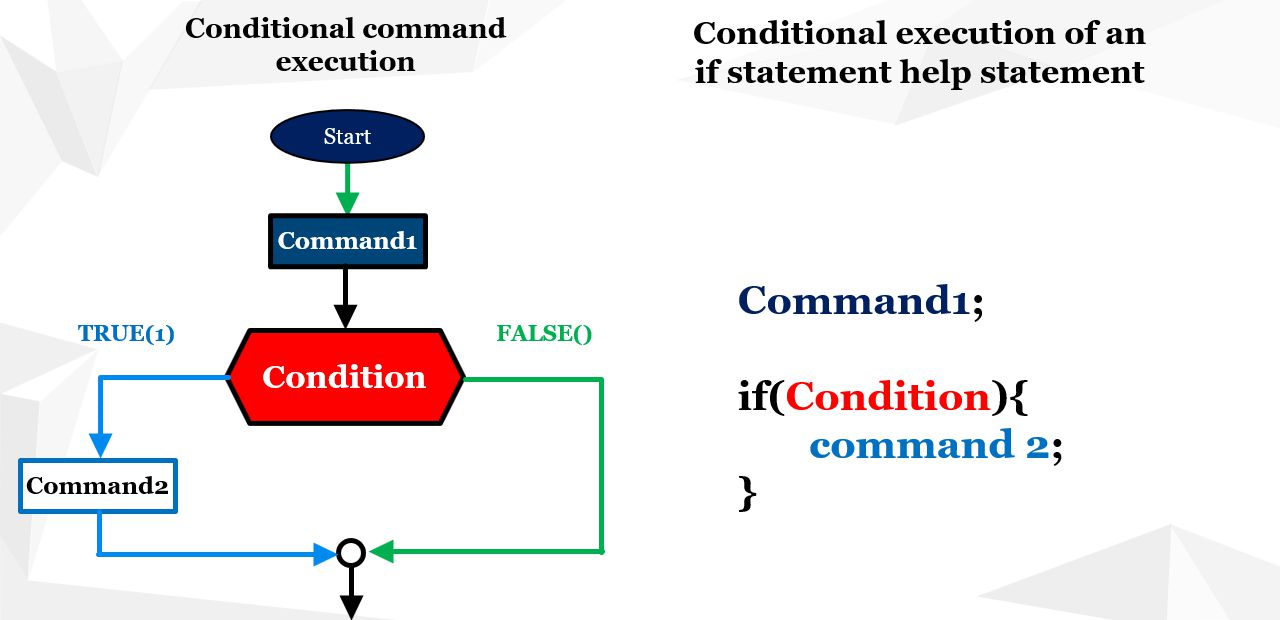

Figure 3: Conditional execution of the command-if statement. Algorithm-left and if statement-right

Now let's see how the previously mentioned command is applied on the example "Checking the correctness of the length".

Example 1: Checking the validity of length

Task: Enter the value of the square's side a and check whether the input is valid, i.e., whether it is a positive number.

Explanation:
For the side length to be valid, it must be positive, since the side of a square cannot be a negative number. The value zero also makes no sense, because in that case the square would be just a single point.

Let's now look at the algorithm and the use of the if statement for this task, as shown in the following figure (figure 4).

inta;
scanf("%d", &a);
if (a > 0) {
printf("Valid side length.");
} else {
printf("Invalid input!");
}

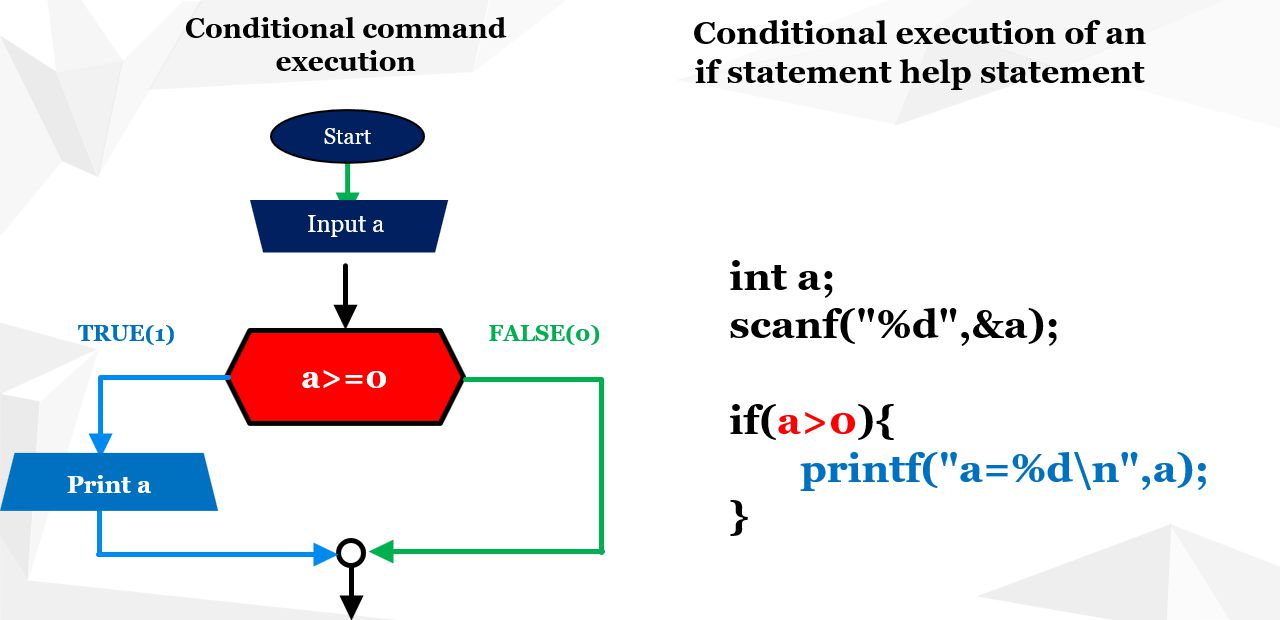

Figure 4: Application of the if command in the example "Checking the correctness of the data". The algorithm is shown in the image on the left, and the code in the image on the right

We can see the execution logic in the figure on the left. The statement for input, as well as the previous definition of variable a, are first executed in a single flow:

inta;
scanf("%d", &a);

Then the validity of the data is checked using the if statement:

if(a > 0) {
printf("a=%d\n", a);
}

So the complete code is:

// Declaration of variable a
inta;

// Input of the variable a from the user
scanf("%d", &a);

// Check if a is greater than 0
if(a > 0) {
// Print the value of a if the condition is satisfied
printf("a=%d\n", a);
}

Example 1b: Checking the validity of length with an alternative error message

Task: Enter the value of the square's side a and check whether the input is valid, i.e., whether it is a positive number. If not, print the message: "Invalid input".

Explanation:
To obtain alternative execution of another statement in case the condition is not satisfied, the if statement must be extended with the else clause, as shown in figure 5.

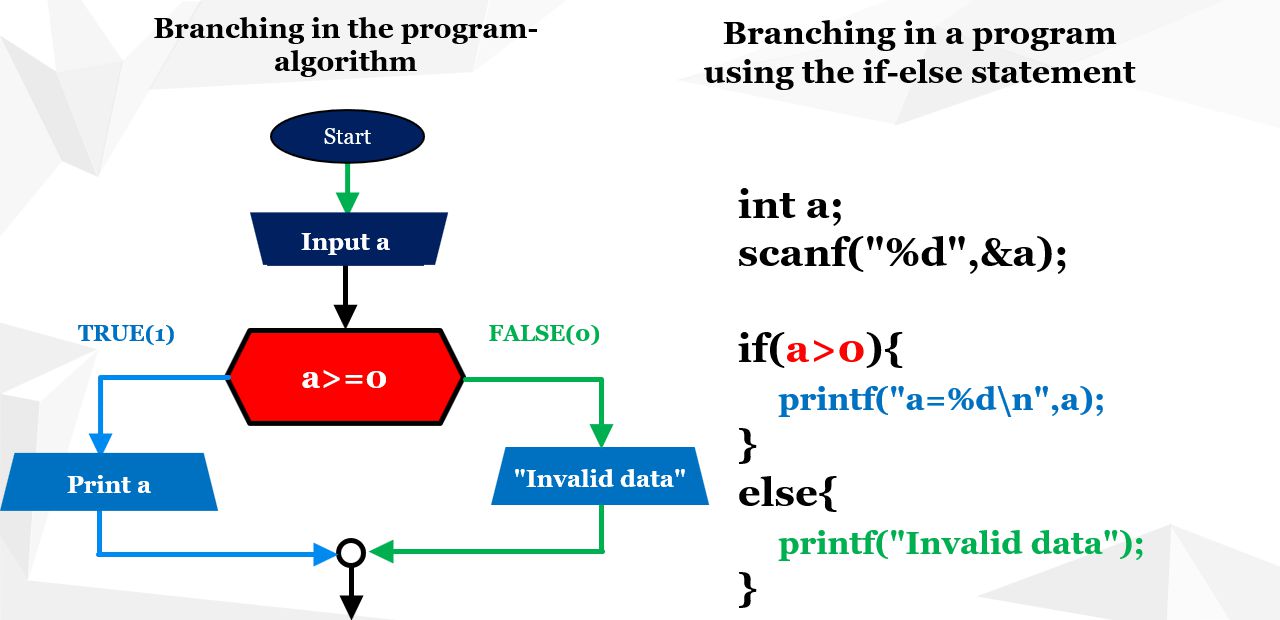

Figure 5: Application of the if command in the example "Checking the correctness of data with alternative text". The algorithm is shown in the image on the left, and the code in the image on the right

The else clause is added after the first block of statements following the if statement and its condition. This clause defines an alternative branch that executes when the if condition is not met.

inta; /* Declaration of variable a */
scanf("%d", &a); /* Input value for variable a */
if(a > 0) { /* Check if a is positive */
printf("a=%d\n", a); /* Print value of a if condition is true */
} else { /* Alternative branch - condition not met */
printf("Condition not satisfied\n"); /* Message when the condition is false */
}

If more than one statement must be executed in a branch, curly braces are mandatory. If there is only a single statement (as in the previous example), braces may be omitted:

if(a > 0) /* Check if a is positive */
printf("a=%d\n", a);
else/* Alternative branch */
printf("a=%d\n", a); /* Print when the condition is false */

Example 2: Calculating the value of a fraction

Task: For the entered numbers a and b, calculate the value of the fraction a/b. Before computing, check whether b is not zero, since division by zero is not allowed.

Explanation:
After declaring variables and reading a and b, we compute the fraction. Before writing the formula c = a / b, we must verify that b is not zero. If it is not zero, the fraction is calculated and the result printed. Otherwise, an error message is displayed.

This example shows that branching depends on the value of the variable b.

Note: The float type is used for the fraction result to preserve decimal values. Dividing two integers would otherwise return a rounded integer result without the fractional part.

#include <stdio.h> /* Including standard library */

intmain() {
inta, b; /* Integer input variables */
floatc; /* Result of the fraction */

printf("Enter number a: ");
scanf("%d", &a);

printf("Enter number b: ");
scanf("%d", &b);

if(b != 0) {
c = (float)a / b;
printf("The value of the fraction is: %.2f\n", c);
} else {
printf("Division by zero is not allowed.\n");
}

return0;
}

Logical Data

These are data whose value is the result of a logical expression and can have two states: true – correct false – incorrect

In C, logical values are typically represented using the int type, where zero means false (logical falsehood) and any non-zero value means true (logical truth). In modern C (C99 and later) you can use the _Bool type or include <stdbool.h> to use bool, true, and false.

Logical Data and Expressions

Logical relations (expressions) are results of comparisons and use the following operators: <, >, <=, >=, !, !=, ==

Meaning: “less than”, “greater than”, “less than or equal to”, “greater than or equal to”, “negation”, “not equal”, “equal”.

Example of Logical Expressions in C

The int type is used in C to represent logical values. The rules are:

zero represents logical falsehood,
any non-zero value represents logical truth (often 1 for clarity).

int a=10, b=8, c;
int d; // logical variable

c = a+b; // arithmetic expression
c = a>b; // c=1 (true)
d = a>b; // valid, d=1 (true)
d = !(a>b); // d=!(1), d=0 (false)

Logical Data and Complex Expressions

To combine multiple logical expressions, we use the operators: && – Logical AND || – Logical OR

Suppose we have the following code:

int a,b,c;
a=10, b=4; c=2;
int d,e; // variables to store results of logical expressions

d = (a==0) && (b>c); /* d=0 && 1 → d=0 (false) */
e = (a==0) || (b>c); /* e=0 || 1 → e=1 (true) */

Figure 6: Branching in a program, algorithm for if-else statement

Suppose we are testing the condition "Is the entered data a greater than 5?" We can introduce an integer variable and create the expression a>5 :

// Declaration of variables
inta, x, condition;
// Reading the value of variable x from standard input
scanf("%d", &x);
// Reading the value of variable a from standard input
scanf("%d", &a);
// Checking the condition: is a greater than x
condition = a>x;

We can further insert this variable condition into the small brackets of the if -else statement:

inta, x, condition;
// Reading the values of variables x and a from standard input
scanf("%d", &x);
scanf("%d", &a);
condition = a>x;
if(condition)
{

printf("Number %d is greater than %d\n", a, x);

}
else
{

printf("Number %d is not greater than %d\n", a, x);

}

Conditional branching in a program

The logical expression a > x in the following example evaluates to false, so statement1 will not be executed. A logical expression can be written directly inside the parentheses of an if statement without introducing an additional variable to store its value.

int a = 3, x = 5;
if (a > x) {
    statement1;
}

Here, a > x is false, so statement1 will not be executed.

Example: Enter an integer and check if it is divisible by 3

A number is divisible by 3 if the remainder of its division by 3 is equal to zero. To calculate the remainder, the operator % is used. Therefore, the condition for branching is: a % 3 == 0.

If the condition is true, the message "The number is divisible by 3" is printed; otherwise, the message "The number is not divisible by 3" is printed.

#include <stdio.h>

/* Enter an integer and check if it is divisible by 3 */
intmain() {
inta;
printf("Enter an integer:\n");
scanf("%d", &a);

if((a % 3) == 0)
printf("The number %d is divisible by 3\n", a);
else
printf("The number %d is not divisible by 3\n", a);

return0;
}

Example execution (input: 9)

Enter an integer:
9
The number 9 is divisible by 3

Note

The condition inside an if statement can be any logical expression (for example, a combination of comparisons and logical operators). If the expression evaluates to true (non-zero), the first block is executed; if it is false (zero), the else block (if present) is executed.

Branching in a 3-branch program

Branching in a program when we have 3 branches or more is achieved using the if-else if-else or if-else if-else if statement. In the first case, 2 conditions are required, and in the second case, 3 conditions.
Figure 7 shows the first case where branching is achieved with 2 conditions:

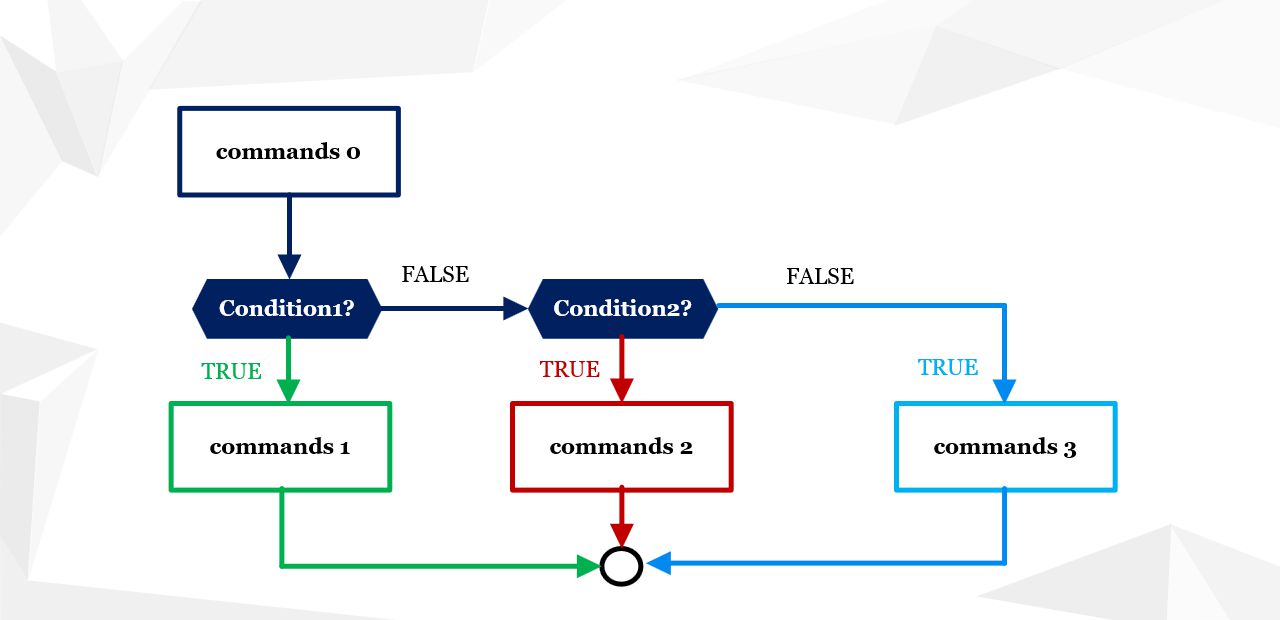

Figure 7: Branching in a 3-branch program in C language, achieved with two conditions (logical expressions)

Code created using this algorithm:

// Statements 0
if(condition1)
{

// Statements 1

}
else if(condition2)
{

// Statements 2

}
else
{

// Statements 3

}

This code represents a branching structure with three branches using if, else if, and else clauses:

First branch (if): When condition1 is true, statements 1 (marked in green) are executed.
Second branch (else if): If the first condition is false but condition2 is true, statements 2 (marked in red) are executed.
Third branch (else): If both previous conditions are false, statements 3 (marked in blue) are executed.

Statements before branching (Statements 0): These statements are independent of the branching and are executed before any condition is checked.

Such a branching structure is useful when there is a precise logic that depends on multiple mutually exclusive conditions. The else clause is used when none of the previous conditions are met, which is helpful for handling the "remaining" scenarios.

If we create 3 branches with 3 conditions

In some cases, it is useful to explicitly define the condition for the third branch. This means that instead of using a final else clause, we use else if, followed by an explicit condition. This is shown in the following diagram:

Branching in a C program with 3 branches, implemented using 3 conditions – algorithm

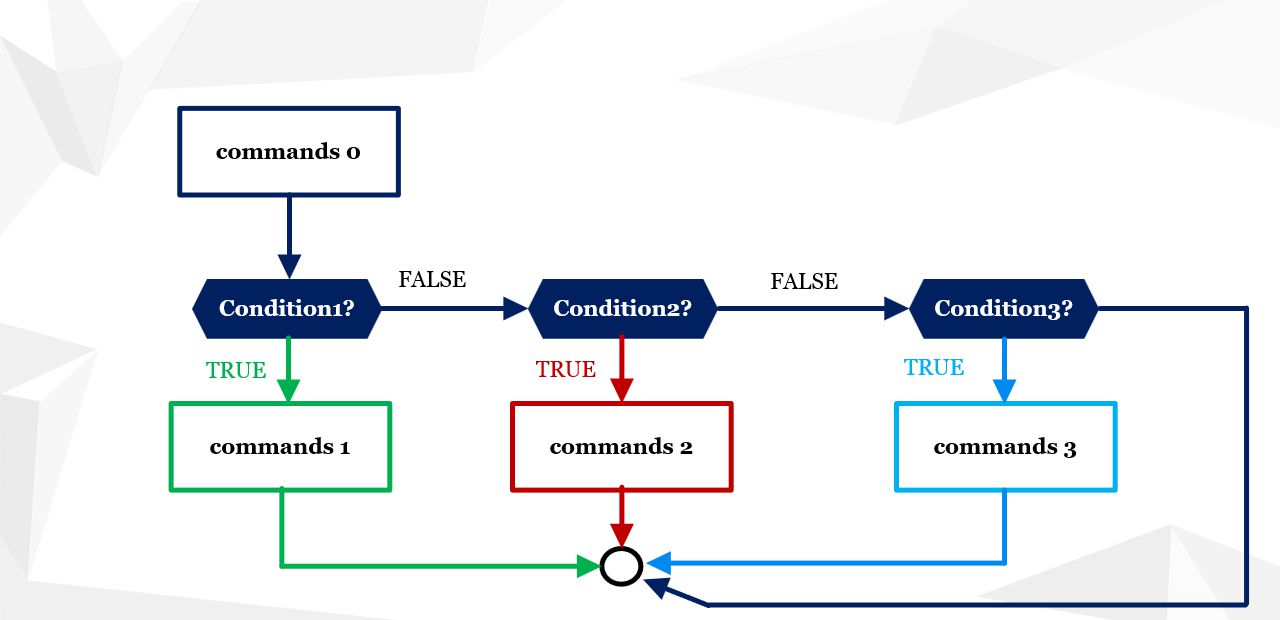

Figure 8: Branching in a C program with 3 branches, implemented using 3 conditions – algorithm

Figure 8 illustrates the program flow when a single flow splits into three branches. To branch a program into 3 or more paths, more than one condition is required, because with only one condition the program can split into just 2 branches depending on whether the condition evaluates to 1 (true) or 0 (false).

Therefore, to split a program into 3 branches, at least 2 conditions are needed, and in some cases even 3. In the diagram, the program actually splits into 4 branches, where the fourth branch contains no statements.

Diagram description

First, the statements are executed in the initial flow (statements 0). Then condition 1 is checked. If it is true, statements 1 are executed (branch 1). If condition 1 is false, then condition 2 is checked. If it is true, statements 2 are executed (branch 2). If condition 2 is also false, then condition 3 is checked. If condition 3 is true, statements 3 are executed (branch 3). If it is not true, all statements are skipped.

The small circle in the diagram represents the point where all flows merge back into a single execution flow.

Figure 8: Branching in a program with 3 branches in C language, achieved with 3 conditions - algorithm

Example 2: Enter two real numbers and compare their values

After entering the numbers a and b from the keyboard, the program branches into three possible paths. These cases are represented by the messages printed with printf:

"a is greater than b"
"a is equal to b"
"a is less than b"

Explanation:
First check whether a > b. If true, print the first message; otherwise check a == b with an else if. The final case is handled by else.

#include<stdio.h>

intmain() {
floata, b;
printf("Enter two real numbers: ");
scanf("%f %f", &a, &b);

if (a > b)
printf("a is greater than b ");
else if (a == b)
printf("a is equal to b ");
else
printf("a is less than b ");

return0;
}

Example 3: Choosing a Geometric Figure

Task: Allow the user to choose one of three geometric figures (1 - Square, 2 - Circle, 3 - Parallelogram). Then read the required data and calculate the area.

#include <stdio.h>
#define PI 3.14159

intmain() {
intchoice;
floatside, radius, base, height, area;

printf("Choose a figure: 1 - Square 2 - Circle 3 - Parallelogram ");
scanf("%d", &choice);

switch (choice) {
case1:
printf("Enter the side of the square: ");
scanf("%f", &side);
area = side * side;
printf("Area of the square = %.2f ", area);
break;
case2:
printf("Enter the radius of the circle: ");
scanf("%f", &radius);
area = PI * radius * radius;
printf("Area of the circle = %.2f ", area);
break;
case3:
printf("Enter the base and height of the parallelogram: ");
scanf("%f %f", &base, &height);
area = base * height;
printf("Area of the parallelogram = %.2f ", area);
break;
default:
printf("Invalid choice. ");
}

return0;
}

You can find examples of branching in the program on the webpage Selection statements - examples
